LIQUID FLAME SYSTEM.

The LIQUID FLAME PUMP STATION is the heart of the liquid flame system. It's where you install and connect the heads, and where you can see all indications like pressure and fuel management. The pump station is equipped with a powerful internal pump and two ½” outputs to connect multiple heads. It contains a 100L internal stainless-steel tank which can be refilled automatically by using the refill pump. All intelligence is inside the pump station, as well as an integrated safety circuit to be controlled with the new SFX SAFETY ARM SYSTEM.

SKU:
MFX1420
Article GTIN:
8719323576605
Request quote

NEW

LIQUID FLAME SYSTEM

The LIQUID FLAME SYSTEM is the ultimate innovation for dedicated SFX experts working at the biggest shows. Dive into a world of cutting-edge technology, where the heart of your setup lies in our state-of-the-art pump station. Boasting a robust internal pump and dual outputs, it seamlessly connects multiple identical heads or a combination of different heads, while its 100 L stainless steel tank ensures uninterrupted brilliance. Complete with an integrated safety circuit and activated and secured by our SFX SAFETY ARM SYSTEM.

Ready to blow minds and light up the stage?
CONTACT FOR MORE INFO PLAN A DEMO

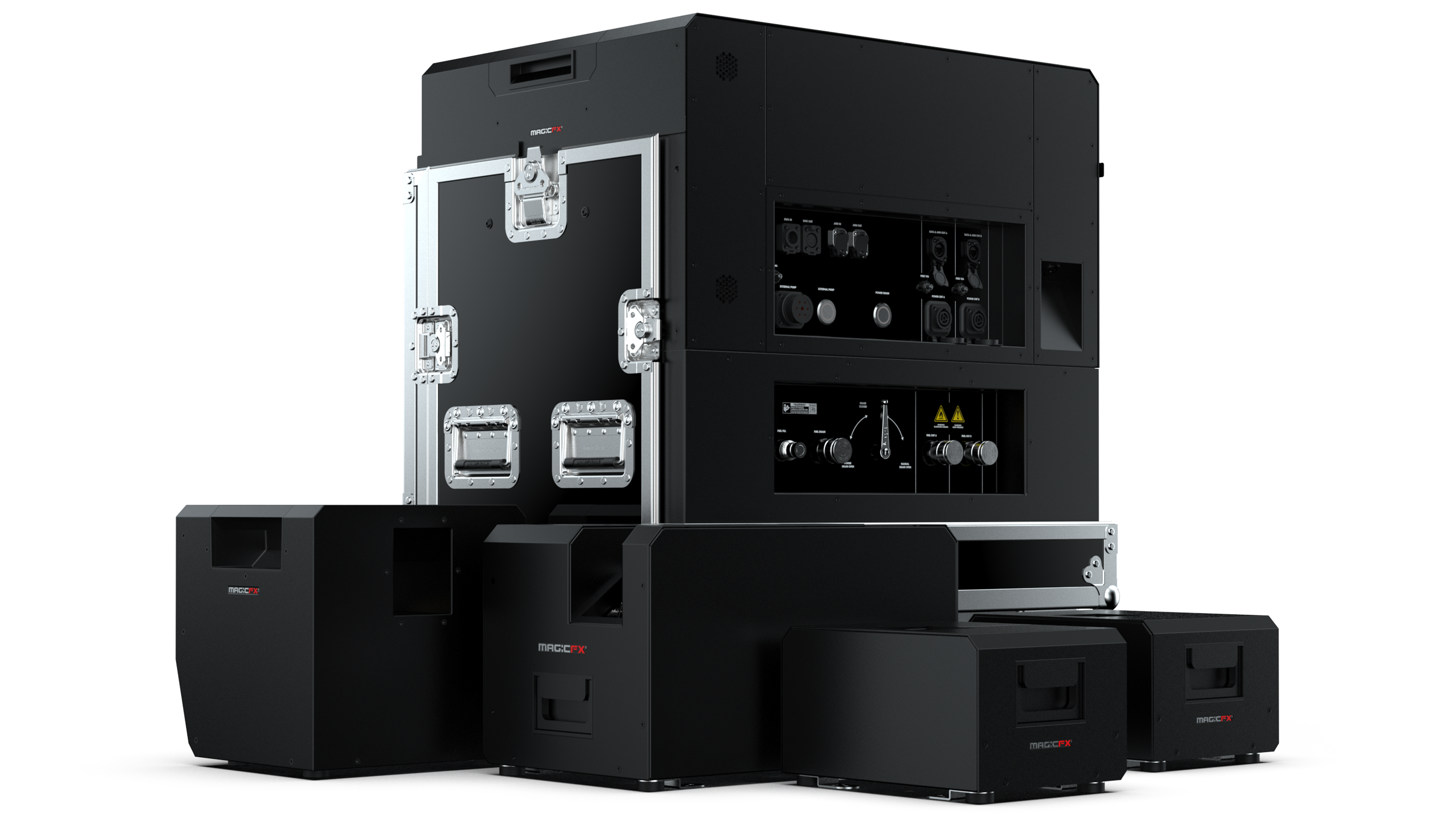

LIQUID FLAME PUMP STATION

The LIQUID FLAME PUMP STATION is the heart of the system from where you connect the heads, configure firing and enable channels and manage fuel. This pump station is equipped with a powerful internal pump and dual outputs to connect multiple heads. It contains a 100 L internal stainless steel tank which can be refilled automatically by using the optional EXTERNAL FILLING PUMP.

AVAILABLE HEADS.

GET IT WHILE IT'S HOT.

The LIQUID FLAME SYSTEM is the ultimate innovation for dedicated SFX experts working at the biggest shows. From the powerful pump station to the choice between our FLAMEBLAZER HEAD or HELLFIRE HEAD, our innovative solution offers unparalleled speed and reliability.

Ready to blow minds and light up the stage?
CONTACT FOR MORE INFO PLAN A DEMO

Specifications.

Length 60 cm
Width 80 cm
Height 96 cm
Weight 179 kg
Power 32A Neutrik® powerCON
Control DMX / RDM / DMX over ARM / ARM input
Consumables Isopar / Isopropanol (IPA)
Output Flames up to 15 m
Tank volume 100 l
Warranty 3 years

DOWNLOADS.

Download the user manual for installation and safety instructions. Or download the product sheet for information about the materials of the product.
LIQUID FLAME SYSTEM INFOSHEET

Related

Hardware.

SFX SAFETY ARM CONTROLLER
combiner rack.jpg
SFX SAFETY COMBINER 19" RACK
combiner box.jpg
SFX SAFETY COMBINER BOX

Accessories.

EXTERNAL FILLING PUMP
UNLEASH SPECTACULAR FLAME EFFECTS.

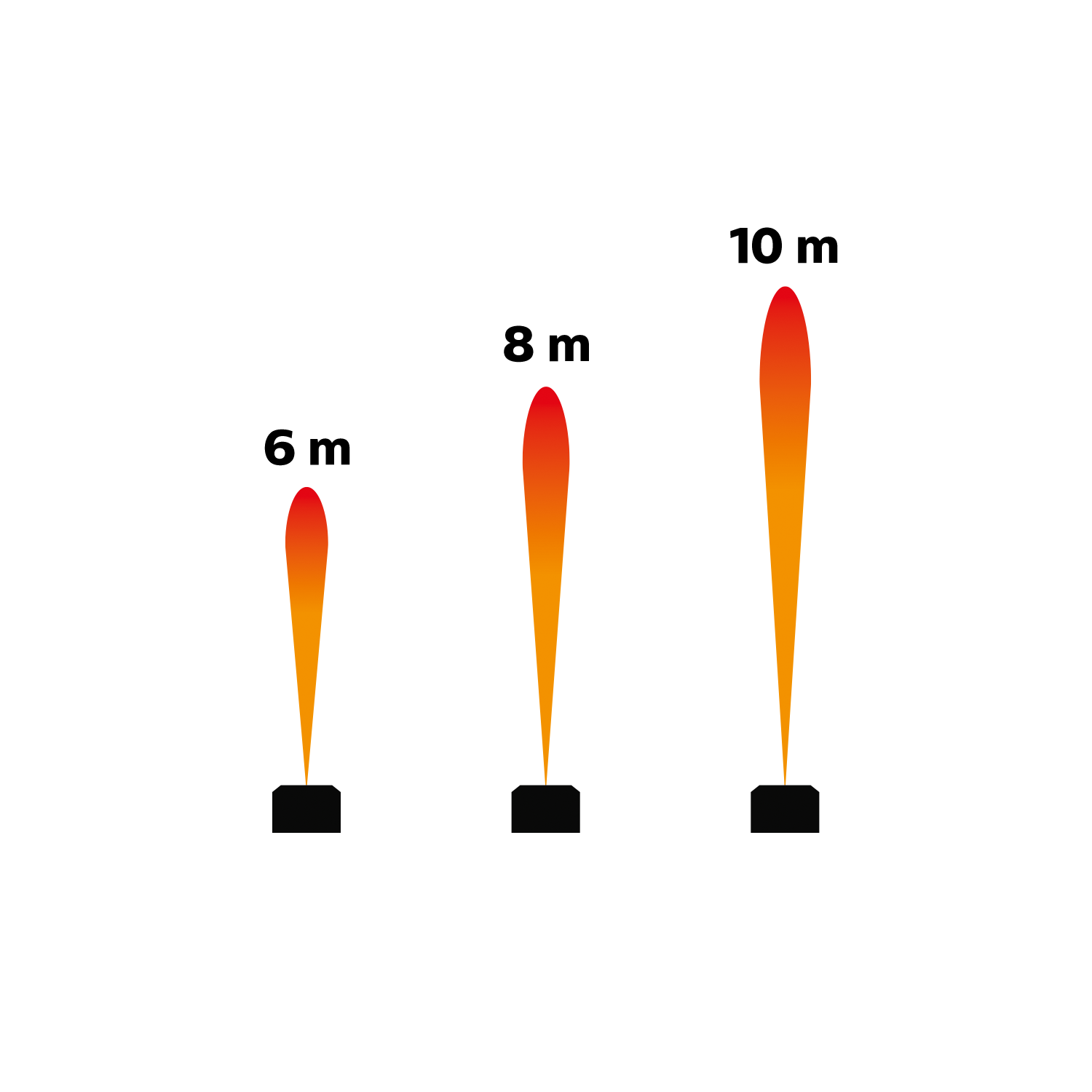

Elevate any event to extraordinary heights with our innovative LIQUID FLAME SYSTEM. At the core of this setup is our state-of-the-art LIQUID FLAME PUMP STATION, featuring a robust internal pump and dual ½ outputs, allowing for seamless connection of multiple flame heads. With the LIQUID FLAME SYSTEM you can choose between various heads. The FLAMEBLAZER HEAD offers flames up to 10 m, while the HELLFIRE delivers a striking 15 m flame burst.

EXPERIENCE SAFE UNMATCHED FIRE PERFORMANCE.

Our LIQUID FLAME SYSTEM, activated and secured by our SFX SAFETY ARM SYSTEM, ensures the highest safety standards, providing a secure and spectacular experience for your audience. The 100 L internal stainless steel tank, which can be conveniently refilled with the optional EXTERNAL REFILLING PUMP, ensures that your show runs smoothly from start to finish.
